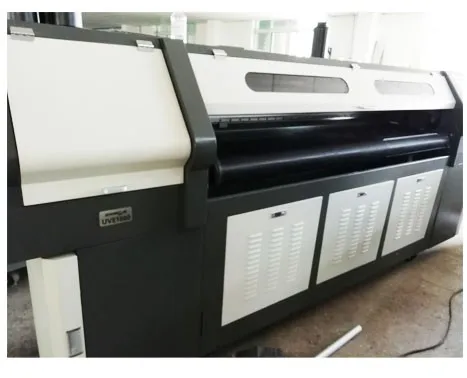

uv printer for sheet & roll materials with fast speed

FOB Reference Price:Get Latest Price
US $10,000-18,500 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Type:
Inkjet Printer
Condition:
New
Plate Type:
sheet to sheet & roll to roll
Place of Origin:
Liaoning, China (Mainland)
Brand Name:
Zhongye
Model Number:
UVE3200/1800/2500
Automatic Grade:
Automatic
Color & Page:
Multicolor
Voltage:
220-240V 50/60HZ
Gross Power:
2000W
Dimensions(L*W*H):
3.3m (4.1m)(4.6M)x 1.05m x 1.65m
Weight:
850KG/950KG/1050KG
Certification:
CE SGS
After-sales Service Provided:
Engineers available to service machinery overseas
Ink color:
C M Y K/C M Y K +W UV ink
Drying system:
UV Led
Print width:
3.2m,1.8m,2.5m
Media handle:
Roll to Roll &Sheet to Sheet.
Print height:
4cm
Resolution:
1440dpi Max
Print head:
Epson DX5/Ricoh Gen5
Packaging & Delivery
Packaging Details
wood package
Port
Dalian port
Lead Time :
7-15days after receive deposit/LC
Product Description

Do you hope to have a printer with UV printer's functions,but with an economical price ? Our UVE printers will be your best choice!


Digital UV Economical & Multifunctional Printer For Sale,can print both roll to roll and sheet to sheet .

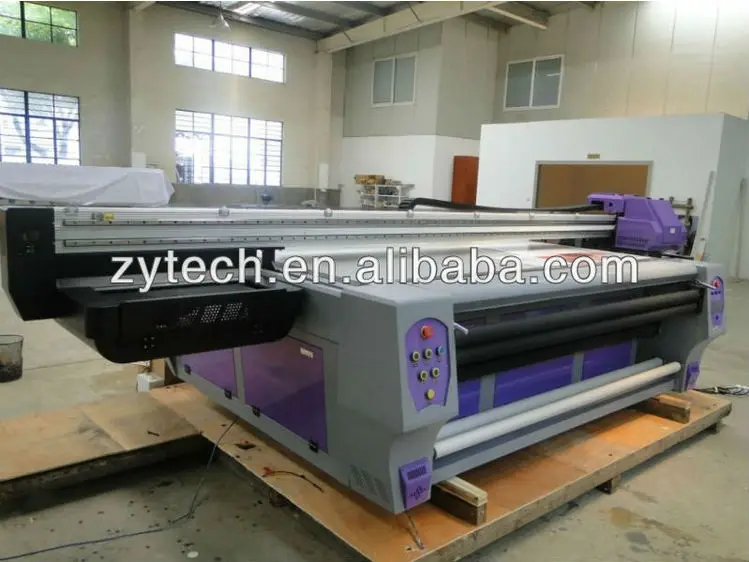

Zhongye UV Economical printer :adopting Epson Dx5/Ricoh print heads,UV LED drying system ,steel belt DC driver,(alternative option:Guide rail.AC servo driver),working with UV ink,widely used for KT board,paper board,PVC board,glass,ceramic,metal board,etc. all flat boards and roll-to-roll printing materials.

Suction belt type wide printing table,dimountable roller leading table,can


UV Economical & Multifunctional Printer applications:

--Decoration industry
--Glass, Ceramic industry;
--Advertising & Sign industry;

--Light box piece

--Soft film box

--Hd advertising
--Furniture and personalized products etc.


UV Economical & Multifunctional Printer media :

--kT Board,PVC  board,

--Class acrylic wood sheet.

--Flex banner,leather.
--Ceramic metal sheet PVC board.
--Corrugated plate plastic etc.
--Almost everything with flat surface .


Specifications of UV Economical  Printer
Product model
UVE3200
UVE2500
UVE1800
Printing Technology
micro piezo drop-on-demand
Print head Number
2 groups Epson DX5 (1 group optional )/Ricoh Gen5 printheads(Paratactic structure)
Max.Print Size
3.2 m
2.5m
1.8m
Print Height
4 cm
Resolution
1440 dpi max
Fast Mode
4 pass: 30sqm/h
4 pass: 28sqm/h
4 pass: 25sqm/h
Production Mode
6 pass: 18sqm/h
6 pass: 16sqm/h
6 pass: 15sqm/h
Quality Mode
8 pass: 12sqm/h
8 pass: 10sqm/h
8 pass: 8sqm/h
Ink Color
C M Y K /C M Y K + W UV Ink
Drying System
UV LED
Working Process
Printmon software for windows 7/windows 8
Data Port
3.0 USB
File Format
Adobe Postscript Level 3,PDF,JPEG,TIFF,EPS,AI
RIP
Maintop/Photoprint/printfactory
Electric Supply
220-240 V ,50/60Hz
Environment temperature
20 - 25 ℃
Relative Humidity
40% -70%
Dimension
4.6m x 1.05m x 1.65m
4.1m x 1.05m x 1.65m
3.3m x 1.05m x 1.65m
Weight
1050kg
950kg
850kg
Media
Glass acrylic wood sheet, ceramic metal sheet PVC board
Corrugated plate plastic etc.nearlly everything with flat surface.
And all the roll to roll materials like flex banner,mesh,one way vision,vinyl etc.

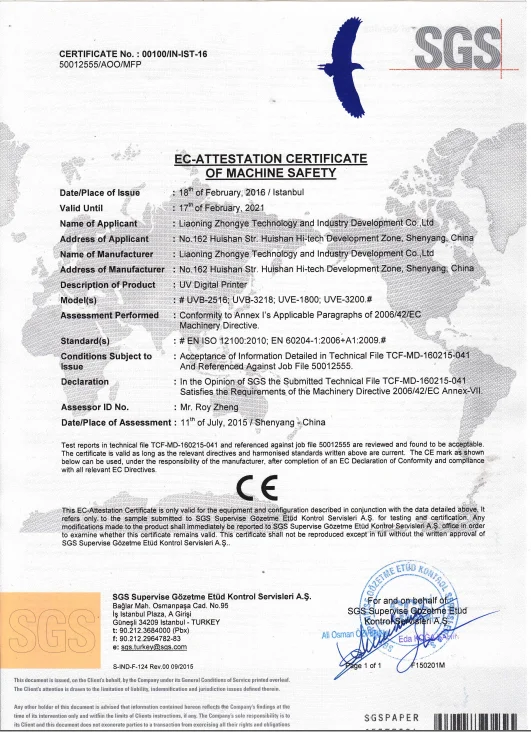

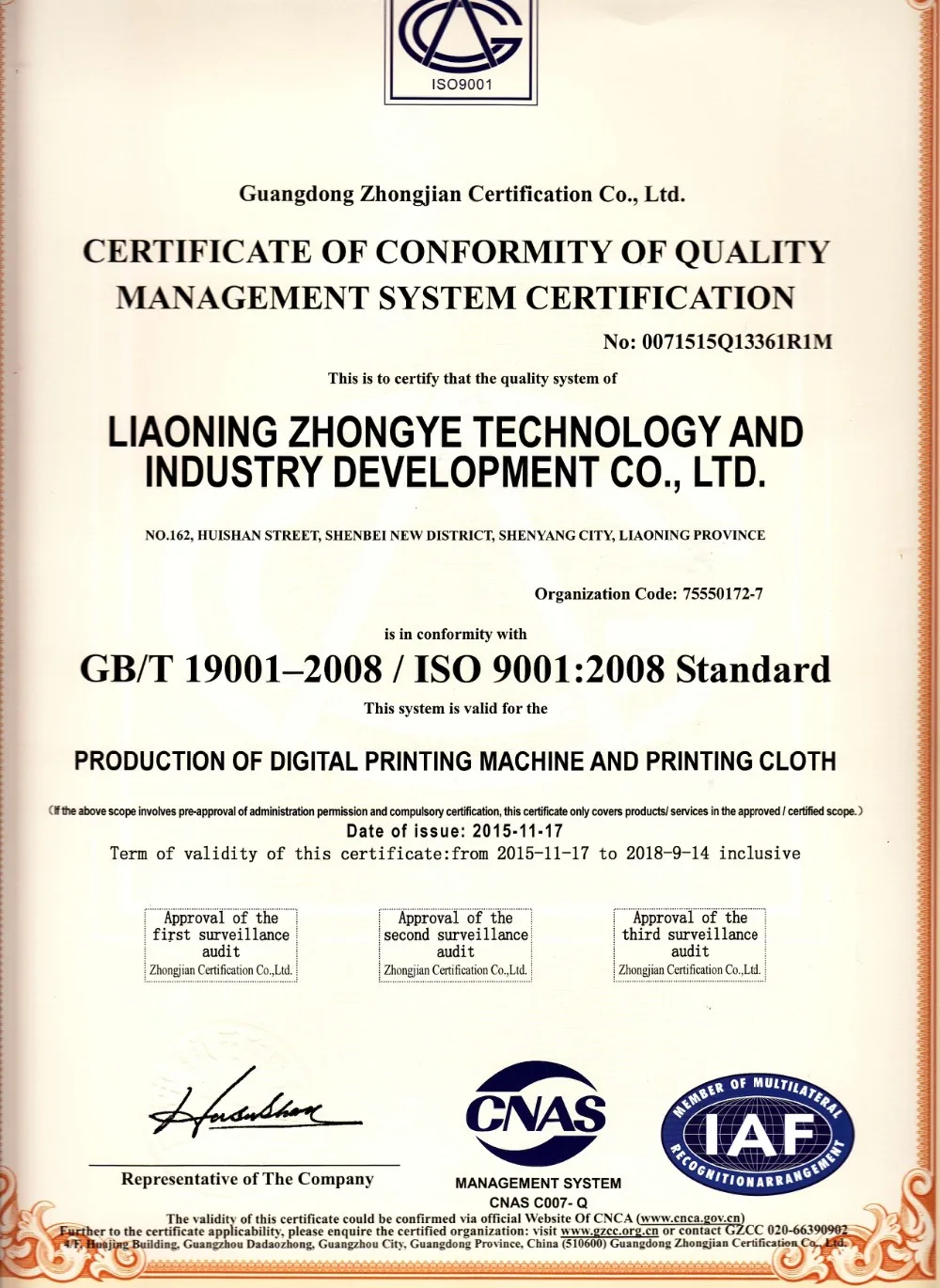

Certifications
Our Company

We are a leading manufacturer in China ,Our products:
1. Large format solvent printer used for outdoors advertisement like banner, vinyl, sticker, mesh, one-way vision printing etc.
2. UV flat bed printer for glass, ceramic tile metal, wood etc. printing
3. Eco solvent printer for indoor and outdoor advertisement, environmentally safe ink, high resolution
4. Sublimation printer for flag, scarf pillow etc.
5.T-shirt printer that can print on T-shirt directly
6. Printing media including banner, vinyl, sticker,mesh,paper, film,pp paper, canvas,wall paper etc.
7.Printing ink like solvent ink , eco solvent ink , UV ink, water base ink , pigment ink, sublimation ink etc.
8. Printer spare parts


Main features of our printing equipment:
1. Adopt Polaris,Epson,SeikoSPT print heads
2. 4colors(CMYK)、5colors(CMYK+W),6colors(CMYK+LC.LM), 7colorS(CMYK.LC.LM+W);
3. Maximum printing speed reaches to 300sqm/hr.;
4. Maximum printing width to 6.8m;
5. Handle with roll to roll or sheet to sheet materials;
6. Printing height maximum to 10cm;
7. Maximum resolution to 1440*1440dpi.

After-sales Service

1.One year warranty and technician is available overseas.lifetime maintainence for printer.

2.Free to change all the spaces except easily broken spares like printhead,ink supplying system etc.
3.Free training and free printer installing,but need afford accmmodation & air tickets & visa if serve on site.
4.Provide one set ink free and one free spare parts with printer together.
5.Free software update for client in the future if needed.
6.Online after sales service by Email,Skype,Wechat,Whatsapp ,phone etc with English speaking engineer.
Packing & Delivery
Related Products

T-shirt Direct Printer


UVE Multifunctionoal Printer

UV roll to roll Printer


FAQ

1. Are you a manufacturer or trading company ?
We are Direct Printing machine manufacturer since 1996. the rock bottom price and best after-sales service can be availarble .

2.Do you offer free printing samples?
Yes, we can print some samples according to customer's requirements.

3. What’s your delivery time?

We will arrange the delivery within 7~15working days after received the deposit or LC .

4. What’s your payment method?
T/T or L/C, Western Union, etc.

5. If I have some technical problem, how can you help us to solve it?
We have experienced English speaking technicians who can supply technical support by email,messager,phone and all other other available methods once received your question.

6. Once there is something need to replace, what can I do?
We supply all the spare parts for the printer. If any part is broken, we will fix it or send you new parts after users send back the broken ones. We suggest that users order spare parts package for long time maintenance and fast replacement.

7. Can we send our technician to your factory for training?
Yes, you are warmly welcome to visit us for free training.

8. We want to become exclusive distributor of your machines?
We look forward to your close cooperation. After you order first machine and be capable of offering after service, then we can start to negotiate about distribution relationship. Thank you.

9. How about Warranty ?
Its 12 months warranty for our machines. During warranty period, the spares(not including the print head and small spending spare parts,and except for human demage) are free to change or repair .
